    IC754VSI12CTD GE Intermediate 12-Inch Color TFT Touch Quick Panel Display

    Ask Lasest Price
    Brand Name : GE
    Model Number : IC754VSI12CTD
    Certification : CO
    Price : $3500
    Payment Terms : T/T
    Supply Ability : 10pcs
    Delivery Time : 3-5 work days
    • Product Details
    • Company Profile

    IC754VSI12CTD GE Intermediate 12-Inch Color TFT Touch Quick Panel Display

    IC754VSI12CTD GE Intermediate 12-inch Color TFT Touch QuickPanel Display


    Product Details:

    Brand NameGE
    ModelIC754VSI12CTD
    CatalogIC754
    OriginUnited States (USA)
    Dimension16*16*12cm
    Weight1kg
    HS Code8537101190
    PaymentT/T
    Sales Price$3500
    Warranty12 months
    Lead time3-5 work days


    Additional Information:

    CoolingNatural convection
    Ambient Operating temperature0°C to +50°C
    Ambient Storage temperature-20°C to +60°C
    Ambient Humidity (operating and storage)

    85% RH
    (non-condensing, wet-bulb temperature:30°C or less)

    EnvironmentPollution Degree 2 as defined by UL60950-1
    Vibration resistance

    5 to 9Hz single-amplitude 3.5mm
    9Hz to 150Hz constant-accelerated velocity 9.8m/s2
    X, Y, Z directions 10 time (100minutes)
    (Compliance 3502, IEC61131-2 JIS B)

    ROHSCompliant with EU RoHS Directive 2002/95/EC using the following exemptions identified in the Annex: 7(a), 7(c)-I, & 7(c)-III.
    Enclosure ratingIP65 and JEM1030 when installed in accordance with the instructions in Chapter 4, “Installation”.


    Description:

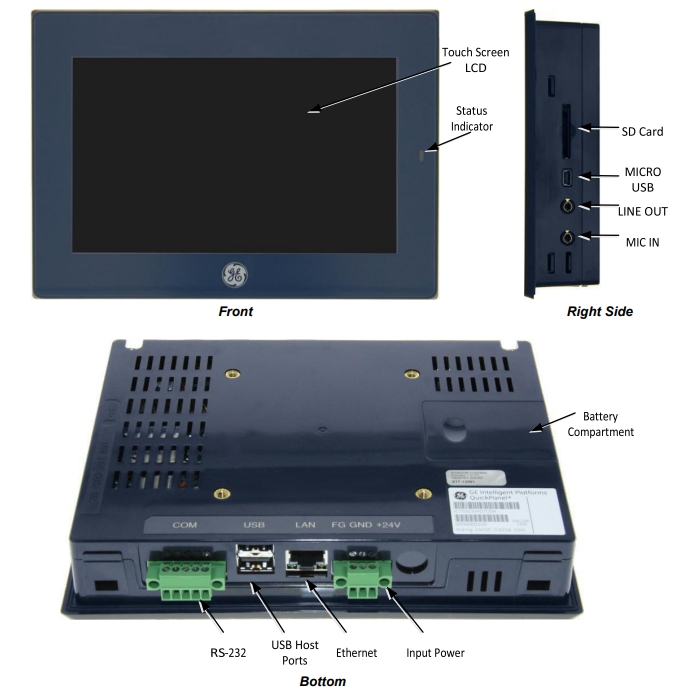

    The IC754VSI12CTD operator terminal enables users to interface with their machines and connects using Proficy View-Machine Edition software via an RS232/ RS485 communication port with a connecting HMI-CAB-C110 communication cable. Users can input information and data using the touchscreen.

    The IC754VSI12CTD is powered by a 12 or 24 VDC power cord. Its combined internal memory is 32 MB.



    The approximate shipping weight and dimensions are 10 lbs. and 16 x 14 x 8 inch respectively. This unit is available in different configurations that suit requirements of most users.

    It is the ideal choice for any networked home environment or can be used as a stand-alone unit. The IC754VSI12CTD is an ideal solution for factory floor HMI.

    This chapter contains information for performing a pre-installation check of your QuickPanel+ operator interface. Before installing and using the QuickPanel+, the following steps should be completed:

    • Unpacking and Inspection
    • Basic Setup
    • Initial Startup
    • Runtime Setup
    • Firmware Updates
    • Shutdown





    Datasheet Link:GE IC754VSI12CTD.pdf
