    IC697ALG230 GE Base Converter Module Complete Analog Subsystem Includes Base Converter And Expander Modules

    Ask Lasest Price
    Brand Name : GE
    Model Number : IC697ALG230
    Certification : CO
    Price : $300
    Payment Terms : T/T
    Supply Ability : 10pcs
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    IC697ALG230 GE Base Converter Module Complete Analog Subsystem Includes Base Converter And Expander Modules

    IC697ALG230 GE Base Converter Module Complete Analog Subsystem Includes Base Converter And Expander Modules


    Additional Information:


    Features

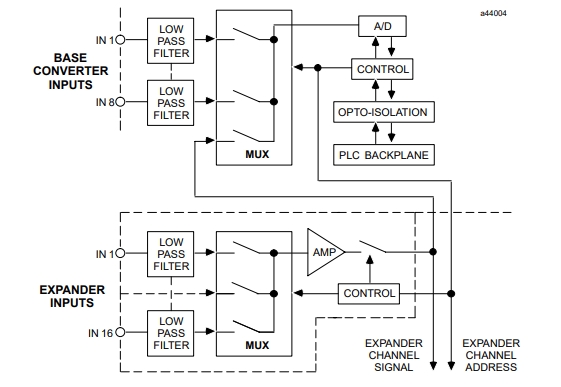

    Complete Analog subsystem includes Base Converter and Expander modules.
    Base Converter module has eight differential inputs individually configurable for voltage or current.
    Accepts unipolar or bipolar Analog Inputs up to " 10 volts full scale.
    Accepts 4 to 20 milliamp current loop signals.
    Individual user scaling on each input channel on Base Converter module; scaling on a per module basis for Expander modules.
    Fast update rate for Base Converter module.
    Voltage and current Expander modules, each with 16 inputs, provides for additional inputs at a lower cost per point.
    Complete subsystem can accept up to 120 inputs.
    No jumpers or DIP switches to configure.
    Easy configuration with MS-DOSor Windows programming software configuration function.


    Description:


    This module has eight differential inputs and an expansion port. Each input can be individually configured for either voltage or current. Each of the input channels also has individual user scaling.



    On-board load resistors are included for normal input current ranges up to Ç 40 mA. If other current ranges or different resolution is required, external resistors may be used.


    Standard system configurations for Ç 10 volts and 4 to 20 mA are available. These, and other lower input ranges, can be scaled to engineering units with the user scaling feature.

    Product Details:


    Brand NameGE
    ModelIC697ALG230
    CatalogIC697
    OriginUnited States (USA)
    Dimension16*16*12cm
    Weight1kg
    HS Code8537101190
    PaymentT/T
    Sales Price$300
    Warranty12 months
    Lead time3-5 work days



    Datasheet Link:GE IC697ALG230.pdf
