    IS200ERSCG1A GE Excitation Regulator Static Converter Pulse Width Modulated PWM DC Output Control

    Ask Lasest Price
    Brand Name : GE
    Model Number : IS200ERSCG1A
    Certification : CO
    Price : $3000
    Payment Terms : T/T
    Supply Ability : 10pcs
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    IS200ERSCG1A GE Excitation Regulator Static Converter Pulse Width Modulated PWM DC Output Control

    IS200ERSCG1A GE Excitation Regulator Static Converter Pulse Width Modulated PWM DC Output Control


    Description:

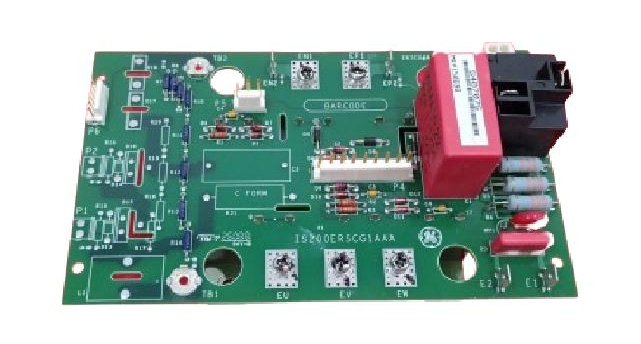

    The IS200ERSCG1A is an excitation regulator static converter. The board is used to provide a pulse width modulated (PWM) DC output for regulator control. The board also provides field current functionality for photovoltaic models via IGBTs.


    The board houses an insulated gate bipolar transistor (IGBT) module, connected to the ERSC using twelve soldered gate lead connections and four bolted power connections. This configuration ensures a secure and reliable connection between the IGBT module and the board.


    The main function of the IS200ERSCG1A is to provide a pulse width modulated (PWM) DC output for the regulator control. Another feature of this regulator is to provide field discharge, which is achieved through one of the six IGBT inverter modules. The IGBTs on the module are used for various other functions, one of which is to discharge the DC link capacitor into an external resistor.


    Product Details:


    Brand NameGE
    ModelIS200ERSCG1A
    ConditionNew
    Gross Weight/Shipping Weight2.2 lbs / 35.2 oz / 1kg
    Packing Size6.4" x 6.4" x 4.8" (16cm x 16 cm x 12 cm)
    Country of Origin/Original CountryUnited States (USA)
    Lead TimeIn Stock
    Shipping PortXiamen
    PaymentT/T
    Sales PriceInquiry
    ColorDepend on product
    Warranty12 months
    Lead time5-8 work days
    Courier partnersDHL, UPS, TNT, FedEx and EMS


    Additional Information:


    Features
    Input Power and Output CapacityThe input power sources include rectified alternating current (ac), direct current from a station battery, or a combination of both.
    Functionality ModesThe board offers functionality to operate in either a simplex system or a redundant system, where two complete regulator systems are linked to a single field.
    Power Switching MechanismThe board utilizes an insulated gate bipolar transistor (IGBT) module mounted on the board for most static power switching operations.
    ERSCG2 Additional PathwayERSCG2 features a distinct pathway designed for latched field discharge during the transition from the primary to the redundant regulator.
