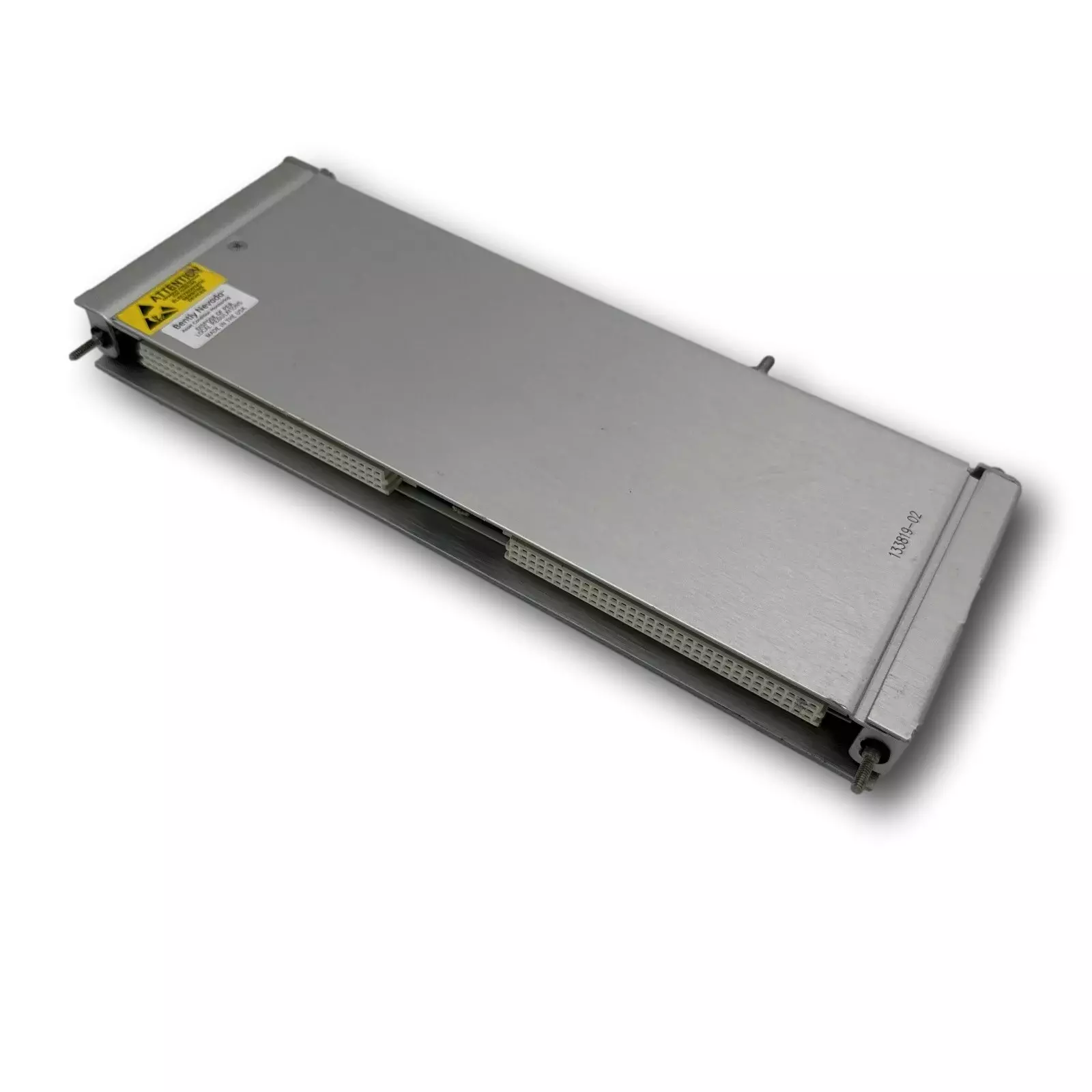

    Bently Nevada 3500/61-01-00 133819-02 RTD/TC Non-Isolated I/O Module Internal Termination

    Ask Lasest Price
    Brand Name : Bently Nevada
    Model Number : 3500/61-01-00 133819-02
    Certification : CO
    Price : inquiry
    Payment Terms : T/T
    Supply Ability : 10 Piece per a day
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Bently Nevada 3500/61-01-00 133819-02 RTD/TC Non-Isolated I/O Module Internal Termination

    Bently Nevada 3500/61-01-00 133819-02 RTD/TC Non-Isolated I/O Module Internal Termination


    Product Details:


    Brand NameBently Nevada
    Model3500/61-01-00 133819-02
    ConditionNew
    Gross Weight/Shipping Weight2.2 lbs / 35.2 oz / 1kg
    Packing Size6.4" x 6.4" x 4.8" (14cm x 10 cm x 6 cm)
    Country of Origin/Original CountryUnited States (USA)
    Lead TimeIn Stock
    Shipping PortXiamen
    PaymentT/T
    Sales PriceInquiry
    ColorDepend on product
    Warranty12 months
    Lead time5-8 work days
    Courier partnersDHL, UPS, TNT, FedEx and EMS

    Additional Information:


    N/MN/M

    Description:


    The 3500/61 modules provide six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. The modules condition these inputs and compare them against user-programmable alarm setpoints. The 3500/60 and 3500/61 provide identical functionality except that the 3500/61 provides recorder outputs for each of its six channels while the 3500/60 does not.


    The user programs the modules to perform either RTD or TC temperature measurements using the 3500 Rack Configuration Software. Different I/O modules are available in RTD/TC non-isolated or TC isolated versions. The user can configure the RTD/TC non-isolated version to accept either TC or RTD, or a mixture of TC and RTD inputs. The TC isolated version provides 250 Vdc of channel-to-channel isolation to protect against external interference.


    When used in a Triple Modular Redundant (TMR) configuration, temperature monitors must be installed adjacent to each other in groups of three. When used in this configuration, the system employs two types of voting to ensure accurate operation and to avoid single-point failures.


    Datesheet Link:3500-60 and 3500-61 Temperature Modules Datasheet...
