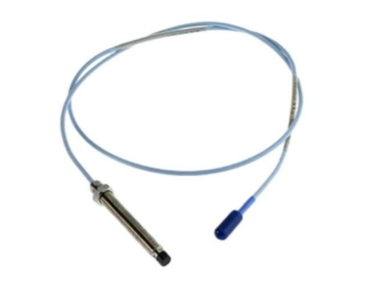

    330101-00-50-10-02-CN 3300XL Bently Nevada 8 mm Probe 3/8-24 UNF Thread Without Armor

    Ask Lasest Price
    Brand Name : Bently Nevada
    Model Number : 330101-00-50-10-02-CN
    Certification : COC
    Price : $500
    Payment Terms : T/T
    Supply Ability : 10 Piece per a day
    Delivery Time : 3-5 work days
    • Product Details
    • Company Profile

    330101-00-50-10-02-CN 3300XL Bently Nevada 8 mm Probe 3/8-24 UNF Thread Without Armor

    330101-00-50-10-02-CN 3300XL Bently Nevada 8 mm Probe, 3/8-24 UNF thread, without armor


    Product Details:


    Brand NameBently Nevada
    Model3300XL
    Ordering information330101-00-50-10-02-CN
    Catalog3300XL
    OriginUnited States (USA)
    Dimension16*16*12cm
    Weight1kg
    HS Code8537101190
    PaymentT/T
    Sales Price$500
    Warranty12 months
    Lead time3-5 work days

    Additional Information:


    Part Number-AA-BB-CC-DD-EE
    A: Unthreaded Length Option

    Order in increments of 0.1 in.

    Length configurations:

    Maximum unthreaded length: 8.8 in.

    Minimum unthreaded length: 0.0 in.

    Example: 0 4 = 0.4 in.

    B: Overall Case Length Option

    Order in increments of 0.1 in.

    Standard thread configurations:

    Maximum case length: 9.6 in.

    Minimum case length: 0.8 in.

    Example: 2 4 = 2.4 in.

    C: Total Length Option
    050.5 meter (1.6 feet)
    101.0 meter (3.3 feet)
    151.5 meter (4.9 feet)
    202.0 meters (6.6 feet)
    303.0 meters (9.8 feet)
    505.0 meters (16.4 feet)
    909.0 meters (29.5 feet)
    D: Connector and Cable-Type Option
    01Miniature coaxial ClickLoc connector with connector protector, standard cable
    02Miniature coaxial ClickLoc connector, standard cable
    11Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable
    12Miniature coaxial ClickLoc connector, FluidLoc cable
    E: Agency Approval Option
    00Not required
    05CSA, ATEX, IECEx Approvals

    Description:


    The 3300 XL 8 mm Proximity Transducer System consists of:

    • One 3300 XL 8 mm probe
    • One 3300 XL extension cable,and
    • One 3300 XL Proximitor Sensor

    330101-3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor.3-meter length option is only available on 330101 probes, and is designed for use with the 9 meter Proximitor sensor only.



    3300 XL 8 mm components are both electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm components when minimum permissible cable bend radius is observed.


    Performance characteristics apply to systems that consist solely of 3300 XL 8 mm components. The system accuracy and interchangeability specifications do not apply to transducer systems that are calibrated to any target other than our AISI 4140 steel target.



    Datasheet Link:Bently Nevada 3300 XL.pdf
