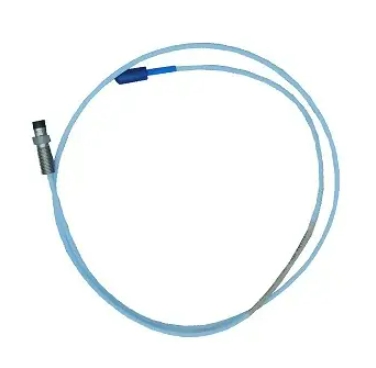

    330101-00-54-10-02-00 3300XL Bently Nevada 8 Mm Probe 3/8-24 UNF Thread Without Armor

    Ask Lasest Price
    Brand Name : Bently Nevada
    Model Number : 330101-00-54-10-02-00
    Certification : COC
    Price : $400
    Payment Terms : T/T
    Supply Ability : 10 Piece per a day
    Delivery Time : 3-5 work days
    • Product Details
    • Company Profile

    330101-00-54-10-02-00 3300XL Bently Nevada 8 Mm Probe 3/8-24 UNF Thread Without Armor

    330101-00-54-10-02-00 3300XL Bently Nevada 8 mm Probe, 3/8-24 UNF Thread Without Armor


    Product Details:


    Brand NameBently Nevada
    Model3300XL
    Ordering information330101-00-54-10-02-00
    Catalog3300XL
    OriginUnited States (USA)
    Dimension16*16*12cm
    Weight1kg
    HS Code8537101190
    PaymentT/T
    Sales Price$400
    Warranty12 months
    Lead time3-5 work days

    Additional Information:


    Description
    One-meter systems do not use an extension cable.
    Proximitor sensors are supplied by default from the factory calibrated to AISI 4140 steel. Calibration to other target materials is available upon request.
    Consult Bently Nevada Applications Note, Considerations when using Eddy Current Proximity Probes for Overspeed Protection Applications, when considering this transducer system for tachometer or overspeed measurements.
    3300 XL 8 mm components are both electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm components.
    Mixing XL and non-XL 3300-series 5 mm and 8 mm system components limits system performance to the specifications for the nonXL 3300 5 mm and 8 mm Transducer System.
    The 3300-series 5 mm probe (refer to Document 141605) uses smaller physical packaging, but does not reduce the side view clearances or tip-to-tip spacing requirements as compared to an 8mm probe.
    8 mm probes provide a thicker encapsulation of the probe coil in the molded PPS plastic probe tip.
    Each 3300 XL extension cable includes silicone tape that you can use instead of connector protectors.

    Description:


    Part Number-AA-BB-CC-DD-EE

    A: Unthreaded Length Option

    Order in increments of 0.1 in. Length configurations: Maximum unthreaded length: 8.8 in. Minimum unthreaded length: 0.0 in. Example: 0 4 = 0.4 in.


    B: Overall Case Length Option

    Order in increments of 0.1 in. Standard thread configurations: Maximum case length: 9.6 in. Minimum case length: 0.8 in. Example: 2 4 = 2.4 in.


    C: Total Length Option

    05 0.5 meter (1.6 feet)

    10 1.0 meter (3.3 feet)

    15 1.5 meter (4.9 feet)

    20 2.0 meters (6.6 feet)

    30 3.0 meters (9.8 feet)

    50 5.0 meters (16.4 feet)

    90 9.0 meters (29.5 feet)



    D: Connector and Cable-Type Option

    01 Miniature coaxial ClickLoc connector with connector protector, standard cable

    02 Miniature coaxial ClickLoc connector, standard cable

    11 Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable

    12 Miniature coaxial ClickLoc connector, FluidLoc cable


    E: Agency Approval Option

    00 Not required

    05 CSA, ATEX, IECEx Approvals



    Datasheet Link:Bently Nevada 3300 XL.pdf
