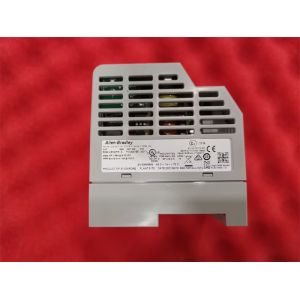

    Allen-Bradley 5094-AEN2TR FLEX 5000 Series Ethernet Adapter Module

    Ask Lasest Price
    Brand Name : Allen-Bradley
    Model Number : 5094-AEN2TR
    Certification : CE
    Price : USD
    Payment Terms : T/T
    Supply Ability : 10EA
    Delivery Time : 5-8 WORKING DAYS
    • Product Details
    • Company Profile

    Allen-Bradley 5094-AEN2TR FLEX 5000 Series Ethernet Adapter Module

    Allen-Bradley 5094-AEN2TR FLEX 5000 Series Ethernet Adapter Module

    About 5094-AEN2TR

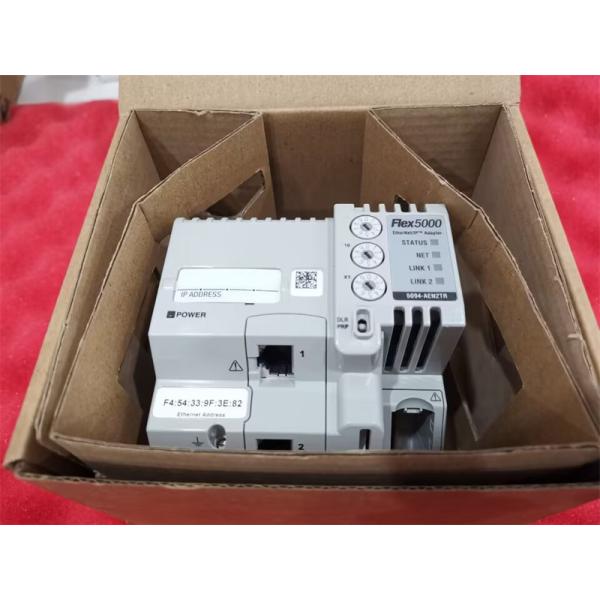

    The 5094-AEN2TR adapter is an RJ 45 enabled Ethernet/IP adapter designed and manufactured by Allen-Bradley. The adapter has been designed to facilitate high-speed data transfer across an Ethernet/IP network between a Flex 5000 Input/Output module and a Logix 5000 controller. This adapter variant can support up to 16 Flex 5000 I/O modules at a time. The adapter is meant to be used in an industrial environment only. It has an open enclosure and it can be used for indoor applications only. It can be mounted using a DIN Rail. A removable terminal block is also available in the adapter. The 5094-AEN2TR adapter is equipped with a reset lever and a DIN Rail latch side by side. The IP address label is placed on the front side of the adapter. There are two RJ 45 Ethernet ports alongside the functional earthing. The Ethernet address of the adapter is also placed with the ports.


    The 5094-AEN2TR adapter is also equipped with LED status indicators. The LEDs show the machine status, NET activity, and transfer of data and information by using LINK 1 and LINK 2. It is also equipped with an IP address rotary switch along with the LED indicators. The adapter is certified with the c-UL-us, CE, RCM, KC, and other standards. It supports 18 to 32 Volts DC voltage and a current rating of 1880 milliamps. It supports an inrush current of 5700 milliamps for a time period of 100 milliseconds. The 5094-AEN2TR adapter works with a backplane current of 1800 milliamps and a backplane voltage of 15 Volts DC. The environment should be free from dust and dirt and harmful vapors and gases.


    Technical Description of 5094-AEN2TR

    The 5094-AEN2TR is a FLEX 5000 EtherNet/IP Adapter with RJ45 Ports manufactured by Allen-Bradley which has Voltage and current ratings, MP of 18...32V DC, 1880 mA, Voltage and current ratings, MP inrush of 18...32V DC, 5700 mA for 100 ms, and Voltage and current ratings, backplane of 15V DC, 1800 mA. The Power dissipation, max for this module is 6.2 W @ 18V DC, and the Thermal dissipation, max is 21.1 BTU/hr @ 24V DC. The Isolation voltage of this model is 300V (continuous), Basic Insulation Type Tested @ 2121V AC for 60 s, Power to Backplane and Backplane to Ethernet Tested @ 4242V DC for 60 s, Power to Ethernet ports No isolation between Ethernet ports .


    Technical Specifications for 5094-AEN2TR

    ManufacturerAllen-Bradley
    BrandAllen-Bradley
    Part Number5094-AEN2TR
    Adapter TypeFLEX 5000 EtherNet/IP Adapter with RJ45 Ports
    Voltage and current ratings, MP18...32V DC, 1880 mA
    Voltage and current ratings, MP inrush18...32V DC, 5700 mA for 100 ms
    Voltage and current ratings, backplane15V DC, 1800 mA
    Recommended external overcurrent protectionMOD Power: 10...12A @ 22.5...43.2 A2t, Fast ActingSA Power: 20 A @ 250V AC
    Power dissipation, max6.2 W @ 18V DC
    Thermal dissipation, max21.1 BTU/hr @ 24V DC
    Isolation voltage300V (continuous), Basic Insulation Type Tested @ 2121V AC for 60 s, Power to Backplane and Backplane to Ethernet Tested @ 4242V DC for 60 s, Power to Ethernet ports No isolation between Ethernet ports
    Wiring category1 - on power ports. 1- on Ethernet ports.
    Wire typeCopper
    Wire size, power RTB0.34...2.5 mm (22...14 AWG) solid or stranded copper wire rated at 105 °C (221 °F), or greater, 1.2 mm (3/64 in.) insulation, max, single wire connection only. Ferrule according to DIN 46 228/1.
    Wire size, functional earth terminal2.5 mm (14 AWG) solid or stranded copper wire rated at 105 °C (221 °F), or greater, 3.5 mm (0.14 in.) max diameter including insulation, single wire connection only.
