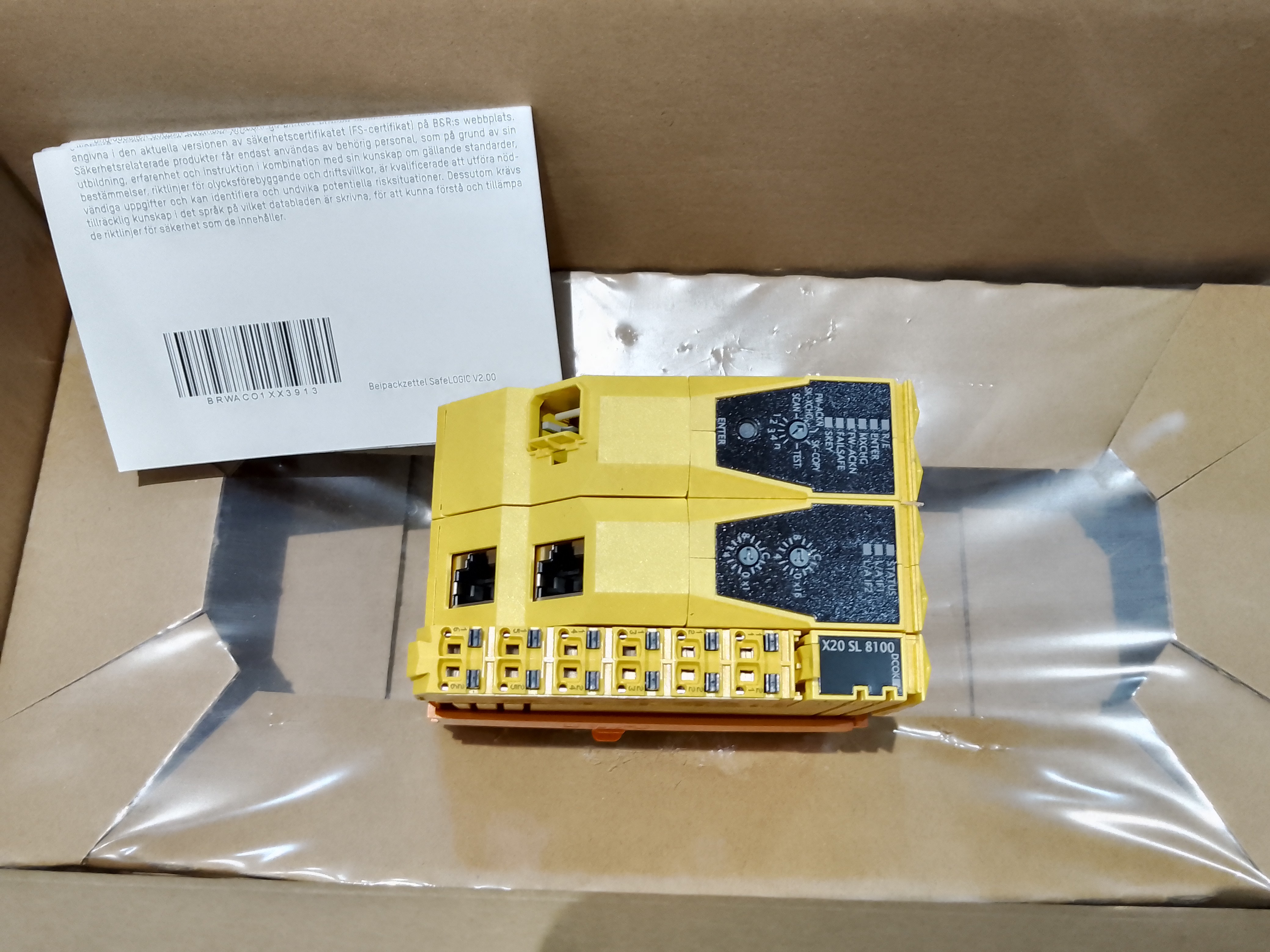

    X20SL8100 B&R X20 SYSTEM CPU Module With SafeLOGIC Functionality

    Ask Lasest Price
    Brand Name : B&R
    Model Number : X20SL8100
    Certification : CE
    Price : USD
    Payment Terms : T/T
    Supply Ability : 10EA
    Delivery Time : 2-3 working days
    • Product Details
    • Company Profile

    X20SL8100 B&R X20 SYSTEM CPU Module With SafeLOGIC Functionality

    X20SL8100 B&R X20 SYSTEM CPU Module With SafeLOGIC Functionality

    X20SL8100 B&R X20 SYSTEM CPU Module With SafeLOGIC Functionality


    MATERIAL NUMBER:
    X20SL8100
    DESCRIPTION:
    • openSAFETY manager for up to 100 SafeNODEs
    • Flexibly programmable using Automation Studio / SafeDESIGNER
    • Innovative management of safe machine options (SafeOPTION)
    • Parameter and configuration management

    The module is equipped with SafeLOGIC functionality that allows it to safely execute applications designed in SafeDESIGNER. The module can be used in safety-related applications up to PL e or SIL 3.

    In addition, the module coordinates the safety-related communication of all modules involved in the application. In this context, the module also monitors the configuration of these modules and carries out autonomous parameter downloads to the modules whenever necessary. This guarantees a consistent and correct module configuration in the network from a safety standpoint in all scenarios involving module replacement and service. These services are performed by the SafeLOGIC controller.

    Short description
    InterfacesPOWERLINK
    System moduleCPU
    General information
    B&R ID code0xDD61
    System requirements
    Automation Studio4.0.16 or later
    Automation RuntimeV3.08 or later (for AsSafety library F4.06 or later)
    SafeDESIGNER3.1.0 or later
    Safety Release1.7 or later
    mapp Technology Packagemapp Safety 5.7.0 or later
    CoolingFanless
    Status indicatorsCPU function, POWERLINK, SafeKEY
    Diagnostics
    CPU functionYes, using LED status indicator
    POWERLINKYes, using LED status indicator
    SafeKEYYes, using LED status indicator
    Power consumption4.3 W
    Additional power dissipation caused by actuators (resistive) [W]-
    Certifications
    CEYes
    UKCAYes
    Functional safetycULus FSPC E361559
    Energy and industrial systems
    Certified for functional safety
    ANSI UL 1998:2013
    Functional safetyIEC 61508:2010, SIL 3
    EN 62061:2005/A2:2015, SIL 3
    EN ISO 13849-1:2015, Cat. 4 / PL e
    IEC 61511:2004, SIL 3
    Functional safetyEN 50156-1:2004
    ATEXZone 2, II 3G Ex nA nC IIA T5 Gc
    IP20, Ta (see X20 user's manual)
    FTZÚ 09 ATEX 0083X
    ULcULus E115267
    Industrial control equipment
    HazLoccCSAus 244665
    Process control equipment
    for hazardous locations
    Class I, Division 2, Groups ABCD, T5
    DNVTemperature: A(0 - 45°C)
    Humidity: B(up to 100%)
    Vibration: A(0.7 g)
    EMC: B(bridge and open deck)
    LRENV1
    KRYes
    ABSYes
    EACYes
    Safety characteristics
    EN ISO 13849-1:2015
    CategoryCat. 4
    PLPL e
    DC>94%
    MTTFD2500 years
    Mission timeMax. 20 years
    IEC 61508:2010,
    IEC 61511:2004,
    EN 62061:2013
    SIL CLSIL 3
    SFF>90%
    PFH / PFHd
    Module<1*10-10
    openSAFETY wiredNegligible
    openSAFETY wireless<1*10-14* Number of openSAFETY packets per hour
    PFD<2*10-5
    Proof test interval (PT)20 years
    Functionality
    Communication with each otherYes
    Support for Safe Commissioning Options
    BOOL512
    INT64
    UINT64
    DINT64
    UDINT64
    SafeMOTION supportYes, depends on the number of available operating licenses on the SafeKEY
    Max. number of SafeMOTION axes70, depends on the data width of the modules used
    Timing precisionTime * 0.05 + Cycle time of the safety application
    Shortest task class cycle time1 ms
    Max. number of SafeNODEs100, depends on the number of available operating licenses on the SafeKEY
    Max. number of POWERLINK controlled nodes50
    Data exchange between CPU and SafeLOGIC controller
    Max. total data width for each direction512 bytes
    Max. number of data points for each direction
    BOOL1024
    INT128
    UINT128
    DINT64
    UDINT64
    Data exchange between SafeDOMAIN and SafeDOMAIN
    Use as Managing SafeDOMAINYes, starting with mapp Safety 5.10.0 and hardware upgrade 2.2.1.0
    Use as Connected SafeDOMAINYes, starting with mapp Safety 5.10.0 and hardware upgrade 2.2.1.0
    Max. total data width for each direction64 bytes
    Max. total number of data points for each direction16
    Max. number of data points for each direction
    BOOL128
    INT16
    UINT16
    DINT16
    UDINT16
    Max. number of linked Managing SafeDOMAINsStarting with mapp Safety 5.10.0 and hardware upgrade 2.2.1.0: 10
    Limit values for SafeDESIGNER application
    Max. resources available for SafeDESIGNER info window entries
    FB instances4096
    Marker memory262,144 bytes
    Stack memory32,768 bytes
    Memory for safe input data6144 bytes
    Memory for safe output data2048 bytes
    Memory for standard input data1024 bytes
    Memory for standard output data1024 bytes
    Marker count16,382
    Additional SafeDESIGNER limit values
    Max. number of function block types512
    Max. number of force variables64
    Max. number of variable with variable status1023
    Input SL / BC / X2X Link power supply
    Input voltage24 VDC -15% / +20%
    Input currentMax. 0.25 A
    Fuse-
    Reverse polarity protectionYes
    Interfaces
    FieldbusPOWERLINK controlled node
    TypeType 3
    Variant2x shielded RJ45 port (hub)
    Line lengthMax. 100 m between 2 nodes (segment length)
    Transfer rate100 Mbit/s
    Transfer
    Physical layer100BASE-TX
    Half-duplexYes
    Full-duplexNo
    AutonegotiationYes
    Auto-MDI/MDIXYes
    Min. cycle time
    Fieldbus200 µs
    Operating conditions
    Mounting orientation
    HorizontalYes
    VerticalYes
    Installation elevation above sea level0 to 2000 m, no limitation
    Degree of protection per EN 60529IP20
    Ambient conditions
    Temperature
    Operation
    Horizontal mounting orientation0 to 60°C
    Vertical mounting orientation0 to 45°C
    Derating-
    Storage-40 to 85°C
    Transport-40 to 85°C
    Relative humidity
    Operation5 to 95%, non-condensing
    Storage5 to 95%, non-condensing
    Transport5 to 95%, non-condensing
    Mechanical properties
    NoteOrder SafeKEY and SafeLOGIC range of functions using the X20MK configurator.
    X20 end cover plate (right) included in delivery
    12-pin X20 terminal block, safety-keyed, included in delivery
    SafeKEY cover included in delivery
    Dimensions
    Width62.5+0.2mm
    Height99 mm
    Depth75 mm
    Weight190 g
