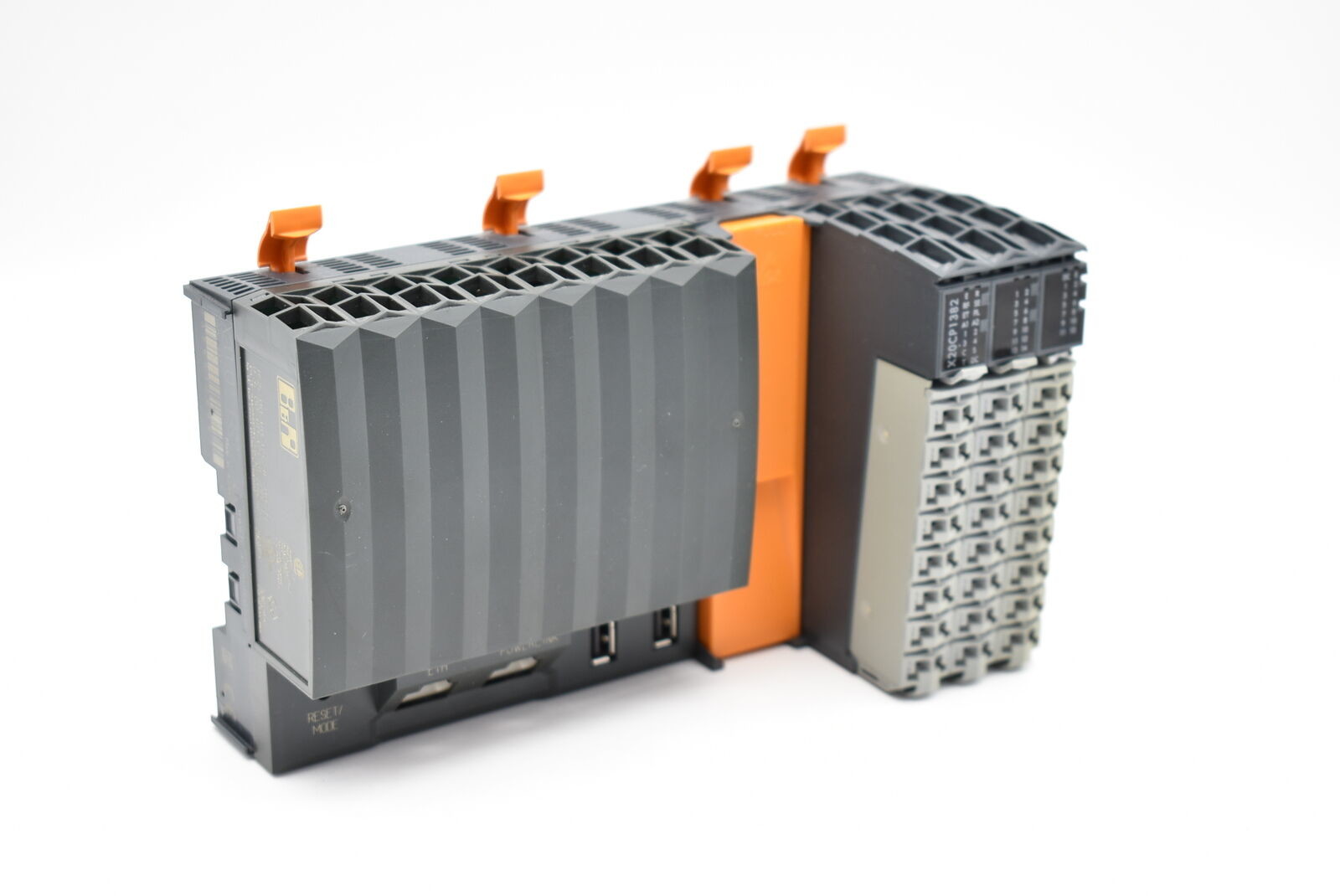

X20CP1382 B&R X20 PLC SYSTEM CPU Module Intel X86 400 MHz Compatible With Integrated I/O Processor

Ask Lasest Price
Brand Name :	B&R
Model Number :	X20CP1382
Certification :	COC
Price :	USD
Payment Terms :	T/T
Supply Ability :	10EA
Delivery Time :	3-5 DAYS

Add to Cart

Product Details
Company Profile

X20CP1382 B&R X20 PLC SYSTEM CPU Module Intel X86 400 MHz Compatible With Integrated I/O Processor

MATERIAL NUMBER:

X20CP1382

DESCRIPTION:

Intel x86 400 MHz compatible with integrated I/O processor
Ethernet, POWERLINK with poll-response chaining and onboard USB
1 slot for modular interface expansion
30 digital inputs/outputs and 2 analog inputs integrated in the device
2 GB onboard flash drive
256 MB DDR3 SDRAM
Fanless
No battery
Backed-up real-time clock

The X20 Compact CPU series is characterized by 3 integrated I/O modules. The device is equipped with 30 different digital inputs/outputs and 2 analog inputs. 1 analog input can be used for PT1000 resistance temperature measurement.

The X20CP1382 is equipped with an Intel x86 400 MHz compatible processor, 256 MB RAM and 2 GB built-in flash drive. The FRAM for storing remanent variables has 32 kB available. A fanless and battery-free design ensures maintenance-free operation.

The CPU is equipped with Ethernet, 2x USB and an RS232 interface. In addition, POWERLINK and CAN bus are available as integrated interfaces. If additional fieldbus connections are needed, the CPU can be upgraded with an interface module from the standard X20 product range.

Short description

Interfaces	1x RS232, 1x Ethernet, 1x POWERLINK, 2x USB, 1x X2X Link, 1x CAN bus
System module	CPU

General information

B&R ID code	0xDABB
Cooling	Fanless
Status indicators	CPU function, Ethernet, POWERLINK, RS232, CAN bus, CAN bus terminating resistor, CPU power supply, I/O power supply, I/O function per channel
Diagnostics
Outputs	Digital outputs: Yes, using LED status indicator and software (output error status)
CPU function	Yes, using LED status indicator
CAN bus data transfer	Yes, using LED status indicator
RS232 data transfer	Yes, using LED status indicator
Inputs	Analog inputs: Yes, using LED status indicator and software
Ethernet	Yes, using LED status indicator
I/O power supply	Yes, using LED status indicator
POWERLINK	Yes, using LED status indicator
Supply voltage monitoring	Yes, using LED status indicator
Temperature	Yes, using software register
Terminating resistor	Yes, using LED status indicator
Support
Controller redundancy	No
ACOPOS support	Yes
reACTION-capable I/O channels	No
Visual Components support	Yes
Power consumption without interface module and USB	5.5 W
Power consumption for X2X Link power supply	0.8 W
Power consumption
Internal I/O	2.3 W
Additional power dissipation caused by actuators (resistive) [W]	-
Type of signal lines	Shielded lines must be used for all high-speed digital inputs/outputs, line length: Max. 20 m
Certifications
CE	Yes
UKCA	Yes
ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
UL	cULus E115267 Industrial control equipment
HazLoc	cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
DNV	Temperature: B(0 - 55°C) Humidity: B(up to 100%) Vibration: B(4 g) EMC: B(bridge and open deck)
LR	ENV1
KR	Yes
ABS	Yes
EAC	Yes

CPU and X2X Link power supply

Input voltage	24 VDC -15% / +20%
Input current	Max. 1 A
Fuse	Integrated, cannot be replaced
Reverse polarity protection	Yes

X2X Link power supply output

Nominal output power	2 W
Parallel connection	Yes
Redundant operation	Yes

Input I/O power supply

Input voltage	24 VDC -15% / +20%
Fuse	Required line fuse: Max. 10 A, slow-blow

Output I/O power supply

Nominal output voltage	24 VDC
Permissible contact load	10 A

Controller

Real-time clock	Retention for at least 300 hours, typ. 1000 hours at 25°C, 1 s resolution, -18 to 28 ppm accuracy at 25°C
FPU	Yes
Processor
Type	Vx86EX
Clock frequency	400 MHz
L1 cache
Data code	16 kB
Program code	16 kB
L2 cache	128 kB
Integrated I/O processor	Processes I/O data points in the background
Modular interface slots	1
Remanent variables	32 kB FRAM, retention >10 years
Shortest task class cycle time	1 ms
Typical instruction cycle time	0.0199 µs
Standard memory
RAM	256 MB DDR3 SDRAM
Application memory
Type	2 GB eMMC flash memory
Data retention	10 years
Writable data amount
Guaranteed	40 TB
Results for 5 years	21.9 GB/day
Guaranteed erase/write cycles	20,000
Error-correcting code (ECC)	Yes

Interfaces

Interface IF1
Signal	RS232
Variant	Connection via 16-pin terminal block X20TB1F
Max. distance	900 m
Transfer rate	Max. 115.2 kbit/s
Interface IF2
Signal	Ethernet
Variant	1x RJ45 shielded
Line length	Max. 100 m between 2 stations (segment length)
Transfer rate	10/100 Mbit/s
Transfer
Physical layer	10BASE-T/100BASE-TX
Half-duplex	Yes
Full-duplex	Yes
Autonegotiation	Yes
Auto-MDI/MDIX	Yes
Interface IF3
Fieldbus	POWERLINK managing or controlled node
Type	Type 4
Variant	1x RJ45 shielded
Line length	Max. 100 m between 2 stations (segment length)
Transfer rate	100 Mbit/s
Transfer
Physical layer	100BASE-TX
Half-duplex	Yes
Full-duplex	POWERLINK mode: No / Ethernet mode: Yes
Autonegotiation	Yes
Auto-MDI/MDIX	Yes
Interface IF4
Type	USB 1.1/2.0
Variant	Type A
Max. output current	0.5 A
Interface IF5
Type	USB 1.1/2.0
Variant	Type A
Max. output current	0.1 A
Interface IF6
Fieldbus	X2X Link master
Interface IF7
Signal	CAN bus
Variant	Connection via 16-pin terminal block X20TB1F
Max. distance	1000 m
Transfer rate	Max. 1 Mbit/s
Terminating resistor	Integrated in module
Controller	SJA 1000

Digital inputs

Quantity	14 standard inputs, 4 high-speed inputs and 4 mixed channels, configuration as input or output using software
Nominal voltage	24 VDC
Input voltage	24 VDC -15% / +20%
Input current at 24 VDC	X1 - Standard inputs: Typ. 3.5 mA X2 - Standard inputs: Typ. 2.68 mA X2 - High-speed inputs: Typ. 3.5 mA X3 - Mixed channels: Typ. 2.68 mA
Input circuit	Sink
Input filter
Hardware	Standard inputs and mixed channels: ≤200 μs High-speed inputs: ≤2 μs, when used as standard inputs: ≤200 μs
Software	Default 1 ms, configurable between 0 and 25 ms in 0.1 ms increments
Connection type	1-wire connections
Input resistance	X1 - Standard inputs: 6.8 kΩ X2 - Standard inputs: 8.9 kΩ X2 - High-speed inputs: 6.8 kΩ X3 - Mixed channels: 8.9 kΩ
Additional functions	X2 - High-speed digital inputs: 2x 250 kHz event counting, 2x AB counter, ABR incremental encoder, direction/frequency, period measurement, gate measurement, differential time measurement, edge counters, edge times
Switching threshold
Low	<5 VDC
High	>15 VDC

AB incremental encoder

Quantity	2
Encoder inputs	24 V, asymmetrical
Counter size	32-bit
Input frequency	Max. 100 kHz
Evaluation	4x
Encoder power supply	Module-internal, max. 300 mA
Overload characteristics of encoder power supply	Short-circuit proof, overload-proof

ABR incremental encoder

Quantity	1
Encoder inputs	24 V, asymmetrical
Counter size	32-bit
Input frequency	Max. 100 kHz
Evaluation	4x
Encoder power supply	Module-internal, max. 300 mA
Overload characteristics of encoder power supply	Short-circuit proof, overload-proof

Event counters

Quantity	2
Signal form	Square wave pulse
Evaluation	1x
Input frequency	Max. 250 kHz
Counter frequency	250 kHz
Counter size	32-bit

Edge detection / Time measurement

Possible measurements	Period measurement, gate measurement, differential time measurement, edge counter, edge times
Measurements per module	Each function up to 2x
Counter size	32-bit
Input frequency	Max. 10 kHz
Timestamp	1 µs resolution
Signal form	Square wave pulse

Analog inputs

Input	±10 V or 0 to 20 mA / 4 to 20 mA, via different terminal connections
Input type	Differential input
Digital converter resolution
Voltage	±12-bit
Current	12-bit
Conversion time	1 channel enabled: 100 µs 2 channels enabled: 200 µs
Output format
Data type	INT
Voltage	INT 0x8001 - 0x7FFF / 1 LSB = 0x0008 = 2.441 mV
Current	INT 0x0000 - 0x7FFF / 1 LSB = 0x0008 = 4.883 μA
Input impedance in signal range
Voltage	20 MΩ
Current	-
Load
Voltage	-
Current	<300 Ω
Input protection	Protection against wiring with supply voltage
Permissible input signal
Voltage	Max. ±30 V
Current	Max. ±50 mA
Output of digital value during overload	Configurable
Conversion procedure	SAR
Input filter	Third-order low-pass filter / Cutoff frequency 1 kHz
Max. error
Voltage
Gain	0.18% (Rev. <C0: 0.37%)
Offset	0.04% (Rev. <C0: 0.25%)
Current
Gain	0 to 20 mA = 0.15% (Rev. <C0: 0.52%) / 4 to 20 mA = 0.25%
Offset	0 to 20 mA = 0.1% (Rev. <C0: 0.4%) / 4 to 20 mA = 0.15%
Max. gain drift
Voltage	0.017 %/°C
Current	0 to 20 mA = 0.015 %/°C / 4 to 20 mA = 0.023 %/°C
Max. offset drift
Voltage	0.008 %/°C
Current	0 to 20 mA = 0.008 %/°C / 4 to 20 mA = 0.012 %/°C
Common-mode rejection
DC	70 dB
50 Hz	70 dB
Common-mode range	±12 V
Crosstalk between channels	<-70 dB
Nonlinearity
Voltage	<0.025%
Current	<0.05%

Resistance measurement temperature inputs

Quantity	1
Input	Resistance measurement with constant current supply for 2-wire connections
Digital converter resolution	13-bit
Conversion time	Only temperature input enabled: 200 µs Temperature and analog input enabled: 400 µs
Conversion procedure	SAR
Output format	INT or UINT for resistance measurement
Sensor
Pt1000	-200 to 850°C
Resistance measurement range	0.1 to 4000 Ω
Temperature sensor resolution	1 LSB = 0x0005 = 0.16°C
Resistance measurement resolution	1 LSB = 0x0005 = 0.49 Ω
Input filter	First-order low-pass filter / cutoff frequency 7 Hz
Sensor standard	EN 60751
Common-mode range	1 V
Linearization method	Internal
Measurement current	1 mA
Permissible input signal	Short-term max. ±30 V
Max. error at 25°C
Gain	0.3% (Rev. <C0: 1.93%)
Offset	0.15% (Rev. <C0: 0.32%)
Max. gain drift	0.023 %/°C
Max. offset drift	0.012%/°C
Nonlinearity	<0.05%
Standardized range of values for resistance measurement	0.1 to 4000.0 Ω
Crosstalk between channels	<-70 dB
Common-mode rejection
50 Hz	>60 dB
Temperature sensor normalization
Pt1000	-200 to 850°C

Digital outputs

Quantity	4 standard outputs, 4 high-speed outputs and 4 mixed channels, configuration as input or output using software
Variant	Standard outputs and mixed channels: Current-sourcing FET High-speed outputs: Push-Pull
Nominal voltage	24 VDC
Switching voltage	24 VDC -15% / +20%
Nominal output current	Standard outputs and mixed channels: 0.5 A High-speed outputs: 0.2 A
Total nominal current	Standard outputs and mixed channels: 4 A High-speed outputs: 0.8 A
Connection type	1-wire connections
Output circuit	Standard outputs and mixed channels: Source High-speed outputs: Sink or source
Output protection	Thermal shutdown in the event of overcurrent or short circuit (see value "Short-circuit peak current") Internal freewheeling diode for switching inductive loads (see section "Switching inductive loads")
Pulse width modulation
Period duration	5 to 65535 µs corresponds to 200 kHz to 15 Hz
Pulse duration	0 to 100%, minimum 2.5 µs
Resolution for pulse duration	0.1% of the configured frequency
Diagnostic status	Standard outputs and mixed channels: Output monitoring with 10 ms delay High-speed outputs: Output monitoring with 10 µs delay
Leakage current when the output is switched off	Standard outputs and mixed channels: 5 µA High-speed outputs: 25 µA
RDS(on)	140 mΩ
Residual voltage	Standard outputs and mixed channels: <0.1 V at nominal current 0.5 A High-speed outputs: <0.9 V at nominal current 0.1 A
Peak short-circuit current	Standard outputs and mixed channels: <3 A High-speed outputs: <20 A
Switch-on in the event of overload shutdown or short-circuit shutdown	Standard outputs and mixed channels: Approx. 10 ms (depends on module temperature) High-speed outputs: No switch-on
Switching delay
0 → 1	Standard outputs and mixed channels: <300 µs High-speed outputs: <3 µs
1 → 0	Standard outputs and mixed channels: <300 µs High-speed outputs: <3 µs
Switching frequency
Resistive load	Standard outputs and mixed channels: Max. 500 Hz High-speed outputs: 50 kHz, max. 200 kHz (see section "Switching frequency derating for high-speed digital outputs")
Inductive load	See section "Switching inductive loads".
Braking voltage when switching off inductive loads	Standard outputs and mixed channels: Typ. 45 VDC

Electrical properties

Electrical isolation	Ethernet (IF2), POWERLINK (IF3) and X2X (IF6) isolated from each other, from other interfaces and from PLC Channel isolated from bus Channel not isolated from channel or PLC

Operating conditions

Mounting orientation
Horizontal	Yes
Vertical	Yes
Installation elevation above sea level
0 to 2000 m	No limitation
>2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature
Operation
Horizontal mounting orientation	-25 to 60°C
Vertical mounting orientation	-25 to 50°C
Derating	See section "Switching frequency derating for high-speed digital outputs".
Storage	-40 to 85°C
Transport	-40 to 85°C
Relative humidity
Operation	5 to 95%, non-condensing
Storage	5 to 95%, non-condensing
Transport	5 to 95%, non-condensing

Mechanical properties

Note	X20 end cover plate (right) included in delivery 3 X20 terminal blocks (16-pin) included in delivery Interface module slot cover included in delivery
Dimensions
Width	164 mm
Height	99 mm
Depth	75 mm
Weight	310 g

X20CP1382 B&R X20 PLC SYSTEM CPU Module Intel X86 400 MHz Compatible With Integrated I/O Processor

Product Tags:


*From:	Your email address is incorrect!
*To:	Joyoung International Trading Co.,Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Explore more B&R Automation Plc products from this supplier

Find Similar Products By Category:

Electronic Components & Supplies

Hot Searches:

Joyoung International Trading Co.,Ltd

X20CP1382 B&R X20 PLC SYSTEM CPU Module Intel X86 400 MHz Compatible With Integrated I/O Processor

X20CP1382 B&R X20 PLC SYSTEM CPU Module Intel X86 400 MHz Compatible With Integrated I/O Processor

X20CP1382 B&R X20 PLC SYSTEM CPU Module Intel X86 400 MHz Compatible With Integrated I/O Processor

X20CP1382 B&R X20 PLC SYSTEM CPU Module Intel X86 400 MHz Compatible With Integrated I/O Processor

MATERIAL NUMBER:

DESCRIPTION:

Short description

General information

CPU and X2X Link power supply

X2X Link power supply output

Input I/O power supply

Output I/O power supply

Controller

Interfaces

Digital inputs

AB incremental encoder

ABR incremental encoder

Event counters

Edge detection / Time measurement

Analog inputs

Resistance measurement temperature inputs

Digital outputs

Electrical properties

Operating conditions

Ambient conditions

Mechanical properties

B&R X20 PLC SYSTEM CPU Module

X20CP1382 B&R X20 PLC

400 MHz B&R Automation Plc

X20CP1382 B&R X20 PLC SYSTEM CPU Module Intel X86 400 MHz Compatible With Integrated I/O Processor
