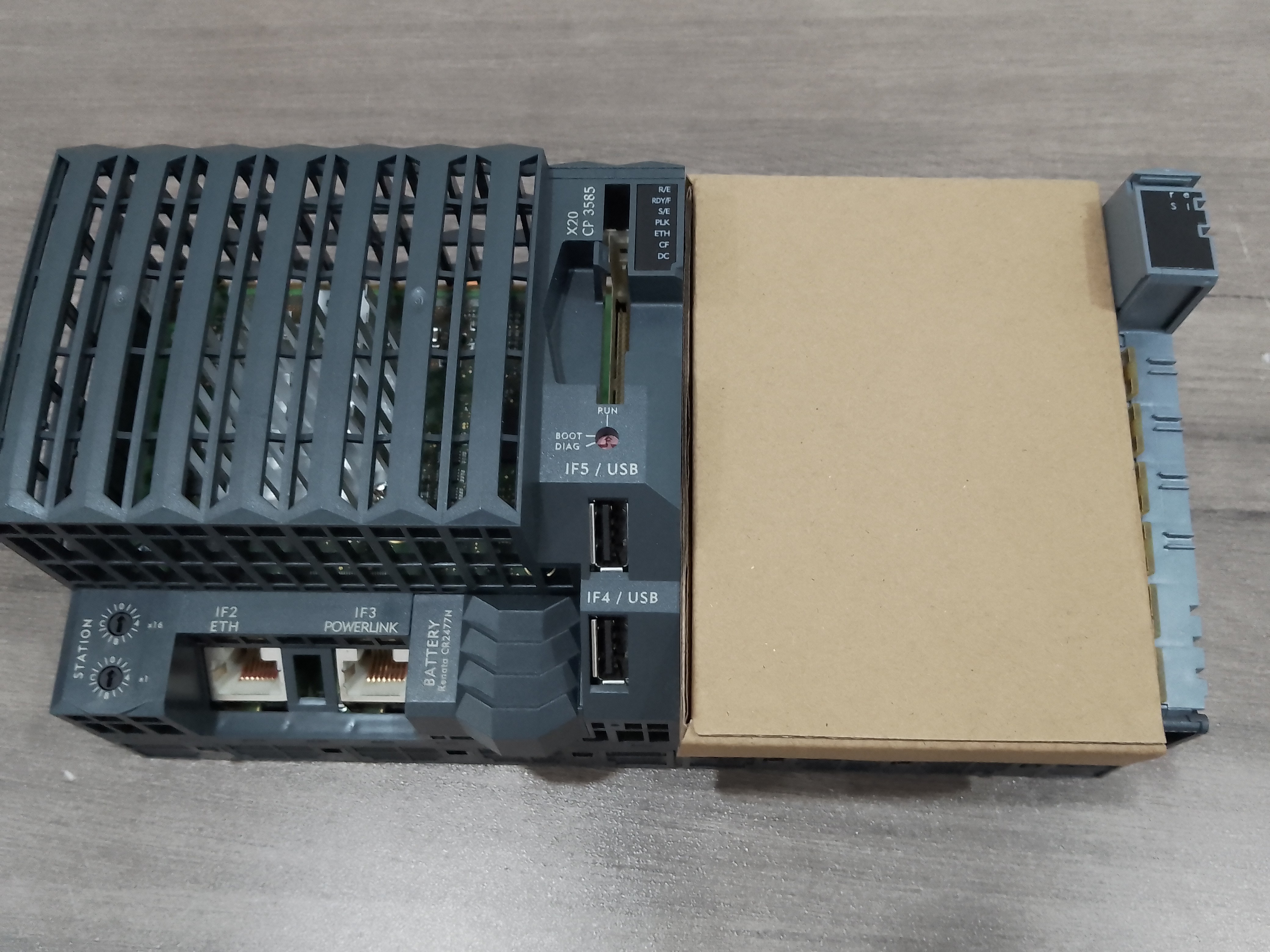

    X20CP3585 B&R X20 CPU Module With An Additional I/O Processor

    X20CP3585 B&R X20 CPU Module With An Additional I/O Processor


    MATERIAL NUMBER:
    X20CP3585
    DESCRIPTION:
    • Intel Atom 1.0 GHz processor with an additional I/O processor
    • Onboard Ethernet, POWERLINK with poll response chaining and USB
    • 3 slots for modular interface expansion
    • CompactFlash as removable application memory
    • 256 MB DDR2-SDRAM
    • Controller redundancy possible
    • Fanless

    The X20CP3585 controller is based on an Atom processor clocked at 1 GHz and equipped with 256 MB DDR2 SDRAM.

    USB, Ethernet, POWERLINK and removable CompactFlash are all included as standard features. A Gigabit Ethernet interface is a standard feature. For even more real-time network performance, the onboard POWERLINK interface supports poll response chaining mode (PRC).

    The controller is equipped with 3 slots available for X20 communication modules. Various bus and network systems can easily be integrated into the X20 system through the use of communication modules.

    FURTHER INFORMATION:

    Technology information: Redundancy

    User's manual: Redundancy for control systems

    Short description
    Interfaces1x RS232, 1x Ethernet, 1x POWERLINK (V1/V2), 2x USB, 1x X2X Link
    System moduleController
    General information
    B&R ID code0xC3AF
    CoolingFanless
    Status indicatorsCPU function, Ethernet, POWERLINK, CompactFlash, battery
    Diagnostics
    BatteryYes, using LED status indicator and software
    CPU functionYes, using LED status indicator
    CompactFlashYes, using LED status indicator
    EthernetYes, using LED status indicator
    POWERLINKYes, using LED status indicator
    TemperatureYes, using software register
    Support
    Controller redundancyYes
    Storage health data supportYes
    ACOPOS supportYes
    Visual Components supportYes
    Power consumption without interface module and USB8.8 W
    Power consumption for X2X Link power supply1.42 W
    Power consumption
    Internal I/O0.6 W
    Additional power dissipation caused by actuators (resistive) [W]-
    Certifications
    CEYes
    UKCAYes
    ATEXZone 2, II 3G Ex nA nC IIA T5 Gc
    IP20, Ta (see X20 user's manual)
    FTZÚ 09 ATEX 0083X
    ULcULus E115267
    Industrial control equipment
    HazLoccCSAus 244665
    Process control equipment
    for hazardous locations
    Class I, Division 2, Groups ABCD, T5
    DNVTemperature: B(0 - 55°C)
    Humidity: B(up to 100%)
    Vibration: B(4 g)
    EMC: B(bridge and open deck)
    LRENV1
    KRYes
    ABSYes
    EACYes
    KCYes
    CPU and X2X Link power supply
    Input voltage24 VDC -15% / +20%
    Input currentMax. 1.5 A
    FuseIntegrated, cannot be replaced
    Reverse polarity protectionYes
    X2X Link power supply output
    Nominal output power7 W
    Parallel connectionYes
    Redundant operationYes
    Input I/O power supply
    Input voltage24 VDC -15% / +20%
    FuseRequired line fuse: Max. 10 A, slow-blow
    Output I/O power supply
    Nominal output voltage24 VDC
    Permissible contact load10 A
    Power supply - General information
    Status indicatorsOverload, operating status, module status, RS232 data transfer
    Diagnostics
    RS232 data transferYes, using LED status indicator
    Module run/errorYes, using LED status indicator and software
    OverloadYes, using LED status indicator and software
    Electrical isolation
    I/O supply - I/O power supplyNo
    CPU/X2X Link supply - CPU/X2X Link power supplyYes
    Controller
    CompactFlash slot1
    Real-time clockNonvolatile, resolution 1 s, -10 to 10 ppm accuracy at 25°C
    FPUYes
    Processor
    TypeAtom E640T
    Clock frequency1 GHz
    L1 cache
    Data code24 kB
    Program code32 kB
    L2 cache512 kB
    Integrated I/O processorProcesses I/O data points in the background
    Modular interface slots3
    Remanent variablesMax. 256 kB
    Shortest task class cycle time200 µs
    Typical instruction cycle time0.0044 µs
    Data buffering
    Battery monitoringYes
    Lithium batteryMin. 2 years at 23°C ambient temperature
    Standard memory
    RAM256 MB DDR2 SDRAM
    User RAM1 MB SRAM
    Interfaces
    Interface IF1
    SignalRS232
    VariantConnection via 12-pin terminal block X20TB12
    Max. distance900 m
    Transfer rateMax. 115.2 kbit/s
    Interface IF2
    SignalEthernet
    Variant1x RJ45 shielded
    Line lengthMax. 100 m between 2 stations (segment length)
    Transfer rate10/100/1000 Mbit/s
    Transfer
    Physical layer10BASE-T/100BASE-TX/1000BASE-T
    Half-duplexYes
    Full-duplexYes
    AutonegotiationYes
    Auto-MDI/MDIXYes
    Interface IF3
    FieldbusPOWERLINK (V1/V2) managing or controlled node
    TypeType 4
    Variant1x RJ45 shielded
    Line lengthMax. 100 m between 2 stations (segment length)
    Transfer rate100 Mbit/s
    Transfer
    Physical layer100BASE-TX
    Half-duplexYes
    Full-duplexPOWERLINK mode: No / Ethernet mode: Yes
    AutonegotiationYes
    Auto-MDI/MDIXYes
    Interface IF4
    TypeUSB 1.1/2.0
    VariantType A
    Max. output current0.5 A
    Interface IF5
    TypeUSB 1.1/2.0
    VariantType A
    Max. output current0.5 A
    Interface IF6
    FieldbusX2X Link master
    Electrical properties
    Electrical isolationEthernet (IF2), POWERLINK (IF3) and X2X (IF6) isolated from each other, from other interfaces and from PLC
    Operating conditions
    Mounting orientation
    HorizontalYes
    VerticalYes
    Installation elevation above sea level
    0 to 2000 mNo limitation
    >2000 mReduction of ambient temperature by 0.5°C per 100 m
    Degree of protection per EN 60529IP20
    Ambient conditions
    Temperature
    Operation
    Horizontal mounting orientation-25 to 60°C
    Vertical mounting orientation-25 to 50°C
    DeratingSee section "Derating".
    Storage-40 to 85°C
    Transport-40 to 85°C
    Relative humidity
    Operation5 to 95%, non-condensing
    Storage5 to 95%, non-condensing
    Transport5 to 95%, non-condensing
    Mechanical properties
    NoteOrder application memory (CompactFlash) separately
    Backup battery included in delivery
    X20 end cover plate (right) included in delivery
    12-pin X20 terminal block included in delivery
    Interface module slot covers included in delivery
    Dimensions
    Width200 mm
    Height99 mm
    Depth85 mm
    Weight470 g
