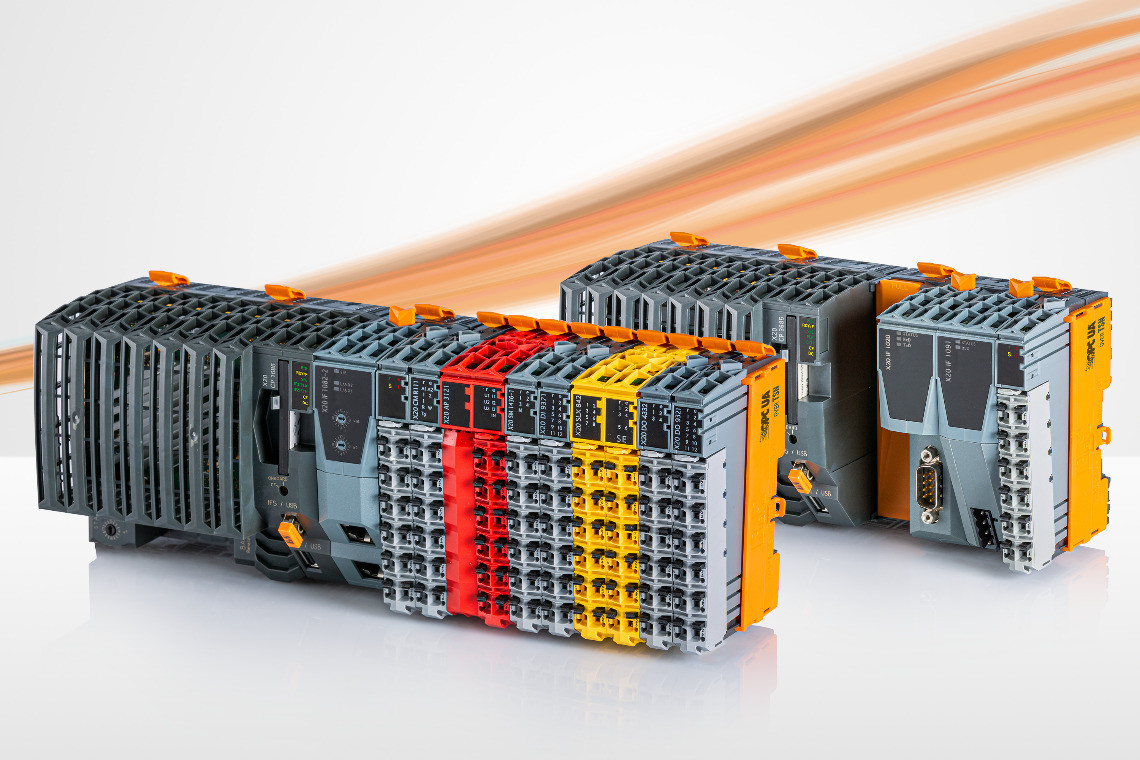

    X20IF1063-1 B&R X20 Plc Interface Module With A PROFIBUS DP V1 Interface

    Ask Lasest Price
    Brand Name : B&R
    Model Number : X20IF1063-1
    Certification : CE
    Price : USD
    Payment Terms : T/T
    Supply Ability : 10EA
    Delivery Time : 3-5 WORKING DAYS
    • Product Details
    • Company Profile

    X20IF1063-1 B&R X20 Plc Interface Module With A PROFIBUS DP V1 Interface

    X20IF1063-1 B&R X20 Plc Interface Module With A PROFIBUS DP V1 Interface


    MATERIAL NUMBER:

    X20IF1063-1

    DESCRIPTION:
    • PROFIBUS DP V1 slave

    The interface module is equipped with a PROFIBUS DP V1 interface. This allows the B&R system (I/O modules, POWERLINK, etc.) to be connected to systems from other manufacturers and makes it possible to quickly and easily transfer data in both directions.

    The interface module can be operated in X20 CPUs or in the expandable POWERLINK bus controller X20BC1083.


    Short description
    Communication module1x PROFIBUS DP V0/V1 slave
    General information
    B&R ID code0xA717
    Status indicatorsModule status, data transfer
    Diagnostics
    Module statusYes, using LED status indicator and software
    Network statusYes, using LED status indicator and software
    Data transferYes, using LED status indicator
    Power consumption1.8 W
    Additional power dissipation caused by actuators (resistive) [W]-
    Certifications
    CEYes
    UKCAYes
    ATEXZone 2, II 3G Ex nA nC IIA T5 Gc
    IP20, Ta (see X20 user's manual)
    FTZÚ 09 ATEX 0083X
    ULcULus E115267
    Industrial control equipment
    HazLoccCSAus 244665
    Process control equipment
    for hazardous locations
    Class I, Division 2, Groups ABCD, T5
    DNVTemperature: B(0 - 55°C)
    Humidity: B(up to 100%)
    Vibration: B(4 g)
    EMC: B(bridge and open deck)
    LRENV1
    KRYes
    ABSYes
    EACYes
    KCYes
    Interfaces
    Interface IF1
    FieldbusPROFIBUS DP V0/V1 slave
    Variant9-pin female DSUB connector
    Max. distance1200 m
    Transfer rateMax. 12 Mbit/s
    ControllernetX100
    Cyclic data
    Input dataMax. 244 bytes
    Output dataMax. 244 bytes
    Electrical properties
    Electrical isolationPLC isolated from PROFIBUS (IF1)
    Operating conditions
    Mounting orientation
    HorizontalYes
    VerticalYes
    Installation elevation above sea level
    0 to 2000 mNo limitation
    >2000 mReduction of ambient temperature by 0.5°C per 100 m
    Degree of protection per EN 60529IP20
    Ambient conditions
    Temperature
    Operation
    Horizontal mounting orientation-25 to 60°C
    Vertical mounting orientation-25 to 50°C
    Derating-
    Storage-40 to 85°C
    Transport-40 to 85°C
    Relative humidity
    Operation5 to 95%, non-condensing
    Storage5 to 95%, non-condensing
    Transport5 to 95%, non-condensing
    Mechanical properties
    SlotIn the X20 CPU and expandable bus controller X20BC1083
